Charnwood College

The project at Charnwood College (G Block Plant Room) was undertaken to upgrade and replace the main heating plant, controls, and associated builders’ work.

• Safe isolation, strip-out and removal of existing gas-fired boilers, water heaters, flues, pumps, pipework, controls, field wiring, and electrical containment.
• Installation of:

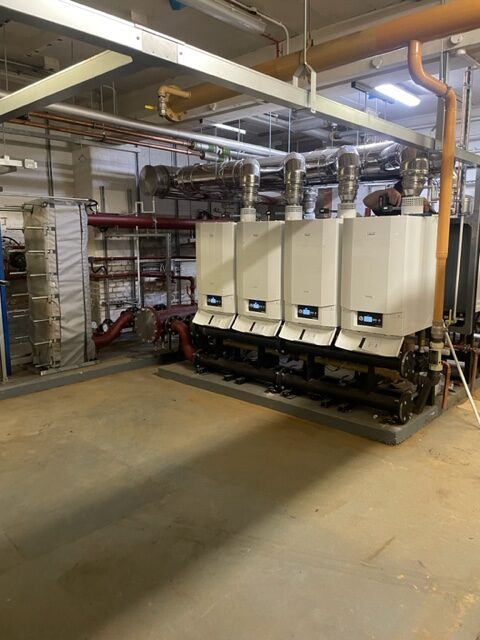

  • 8 high-efficiency gas-fired boilers with associated flue systems.

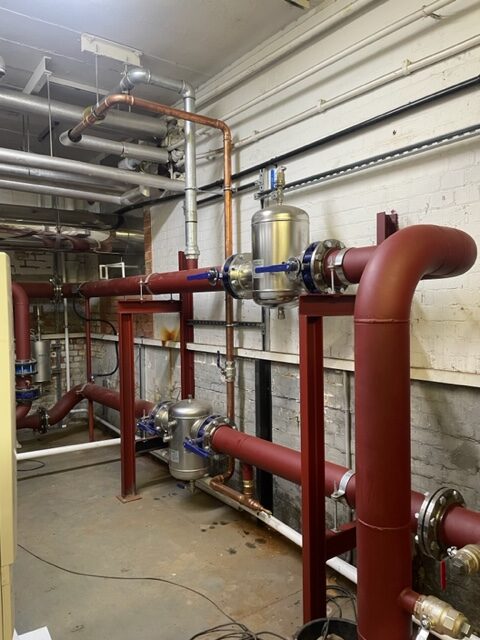

  • 1 plate heat exchanger, automatic filling devices, and expansion vessels.

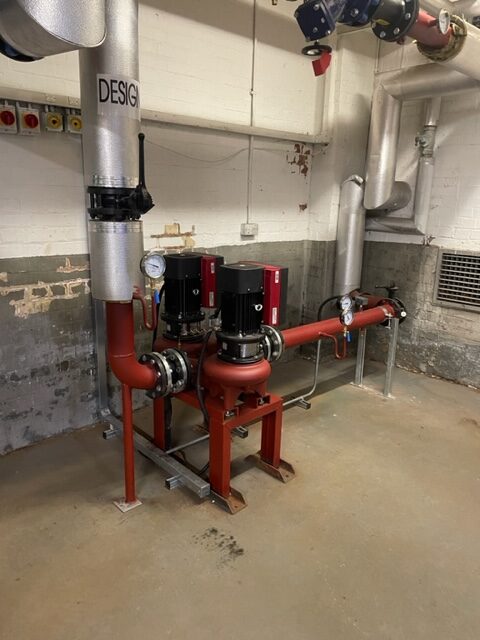

  • New pump sets, control panel, and system controls, fully integrated with the existing Trend BMS.

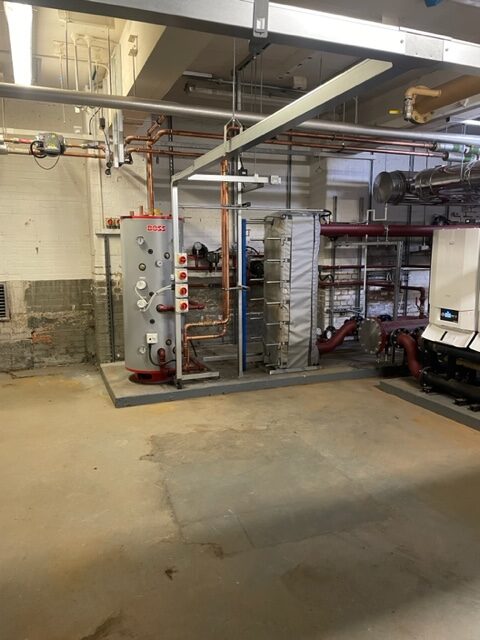

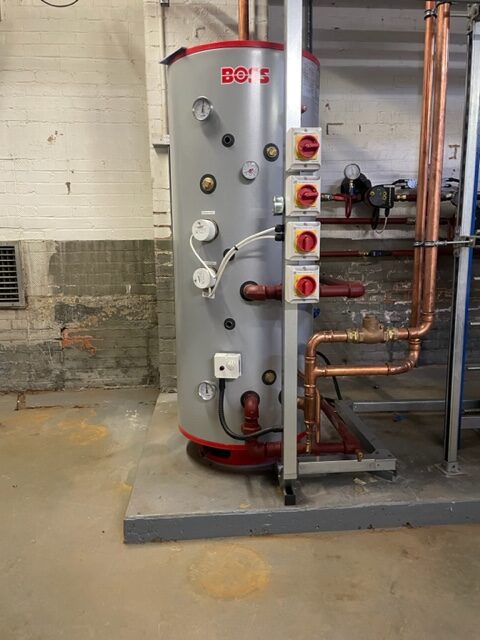

  • New DHW cylinder to replace the previous water heaters, including all associated hot and cold-water connections.

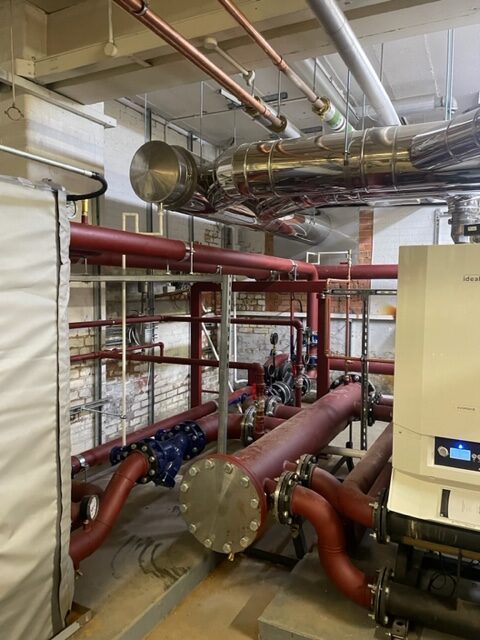

• Modifications and connections to existing LPHW, MCW, and gas pipework, including replacement of the main ECV gas valve.
• Installation of new flue systems, including builders’ work and safe access arrangements for chimney maintenance.
• Electrical installation works:
  • New switch control panel, power supplies, containment, and field wiring.
  • Integration of sensors and equipment with the BMS.
• Ancillary works:
  • Upgrades to basement sump pumps, with new discharge pipework and flood alarm system linked to BMS.
  • Installation of condensate, safety valve, AAV, and waste pipework.
  • Thermal insulation with stucco aluminum cladding.
• Testing and Commissioning:
  • Pressure testing, flushing, and chemical treatment of all LPHW and water services.
  • Balancing, commissioning, and setting to work of all new plant and automatic controls.
• Handover:
  • Full O&M Manuals issued with “As-installed” drawings and commissioning certification.
